SLX

Chassis Weight

830g / 1.8lbs

Chassis system alone.

Operating Weight

2kg / 4.5lbs

Depending on rifle and accessories.

Overall Length

890mm / 35.04"

Set at minimum legth of pull.

Cheer Riser Height

0mm / Level with centreline

Measured from centreline of barrel / action.

Length of Pull

325mm (+50mm) / 12.8" (+2.0")

Measured from trigger to rear face of Decel Pad.

Fore End Length

240mm / 9.5"

Measured from front face of action.

Fore End Width - External

38mm / 1.5"

Nominal dimension, side to side.

Max. Barrel Diameter

28mm / 1.1"

Allowing for M-LOK clearances.

Magazine Compatibility

Tikka T1x Factory Unit

Check for aftermarket versions.

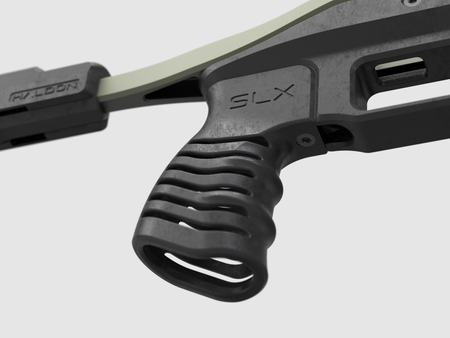

Grip Type

Ergo (Skeletal)

Proprietary grip design for the SLX chassis system.

Thumb Rest

None

N/A

Material (chassis)

6082 (6061 equivalent)

CNC milled from a single billet.

Material (components)

Forged (PA12)

Produced via advanced MJF laser sintering.

Material (fixings)

316 Stainless Steel

Only high grade stainless used across all nuts, screws and springs.

Finish

Cerakote H-Series

Hard surface treatment applied to protect metalwork.
